7.3 IPR Valve Guide: Performance, Troubleshooting, and Maintenance

For owners of the legendary 7.3L Powerstroke diesel engines, one of the most important parts to know about is the IPR valve. Whether you are facing a crank-no-start problem or searching for ways to boost your engine’s performance, it is crucial to know what the Injection Pressure Regulator (IPR) is so that you can keep your vehicle running.

This guide provides all the important information about the 7.3 IPR valve, its operation, its placement, and how to keep it in excellent working condition.

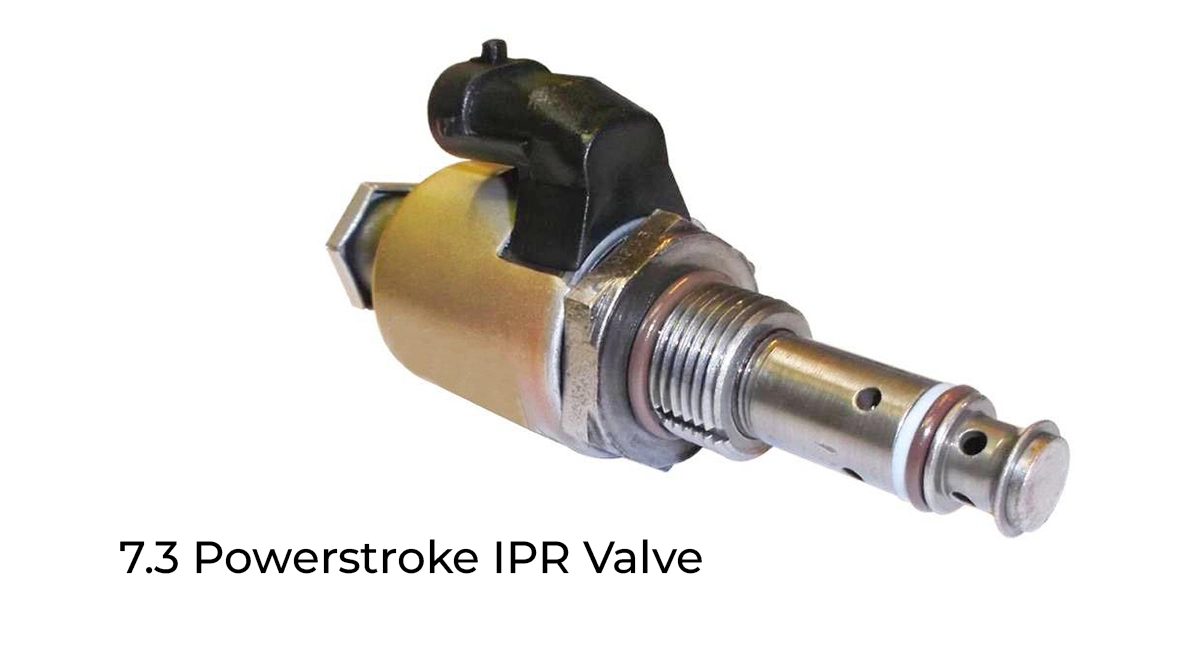

What is the 7.3 Powerstroke IPR Valve?

7.3 IPR valve, often called the heart of the high-pressure oil system in the engine, holds the power to activate the fuel injectors of the HEUI (Hydraulically Controlled Electronically Injected Unit) fuel system. It is used in the 7.3L Powerstroke engine and runs on high-pressure oil from the engine.

The IPR valve 1000 (a popular phrase for the amount of power and pressure booster kits) directs the amount of oil sent to the fuel injectors by the high-pressure oil pump (HPOP).

This regulation of oil supply ensures that the right amount of injection control pressure is maintained, allowing the engine to function properly at any given time.

When the 7.3 IPR valve operates effectively, the truck starts, idles, and pulls as it should.

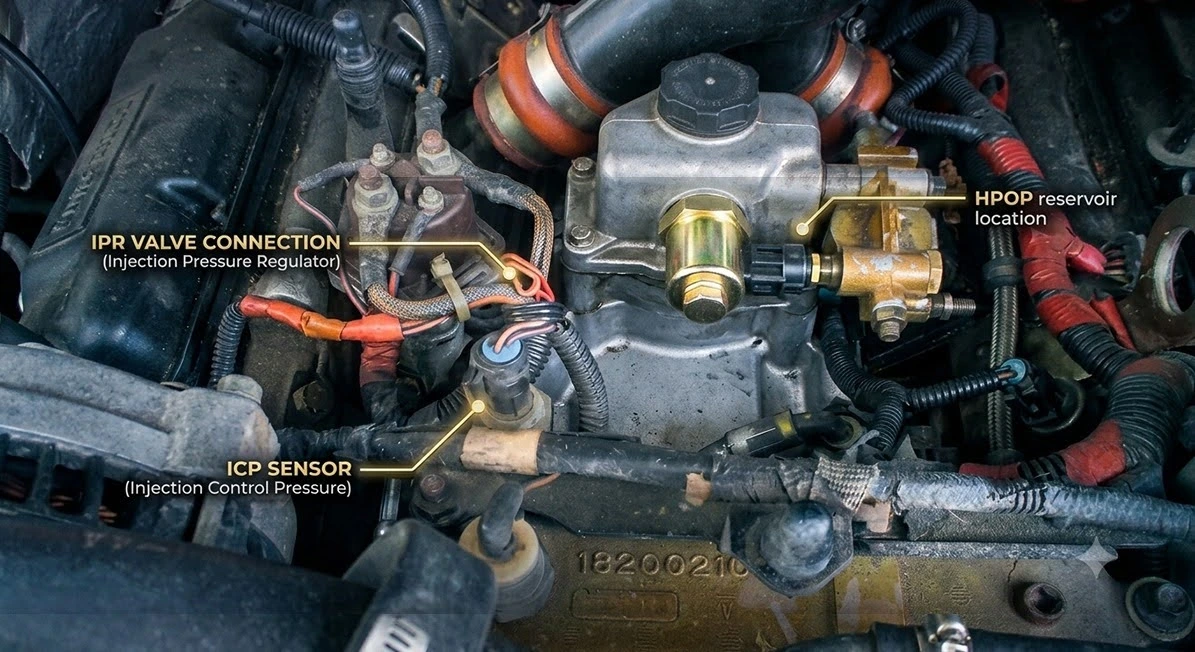

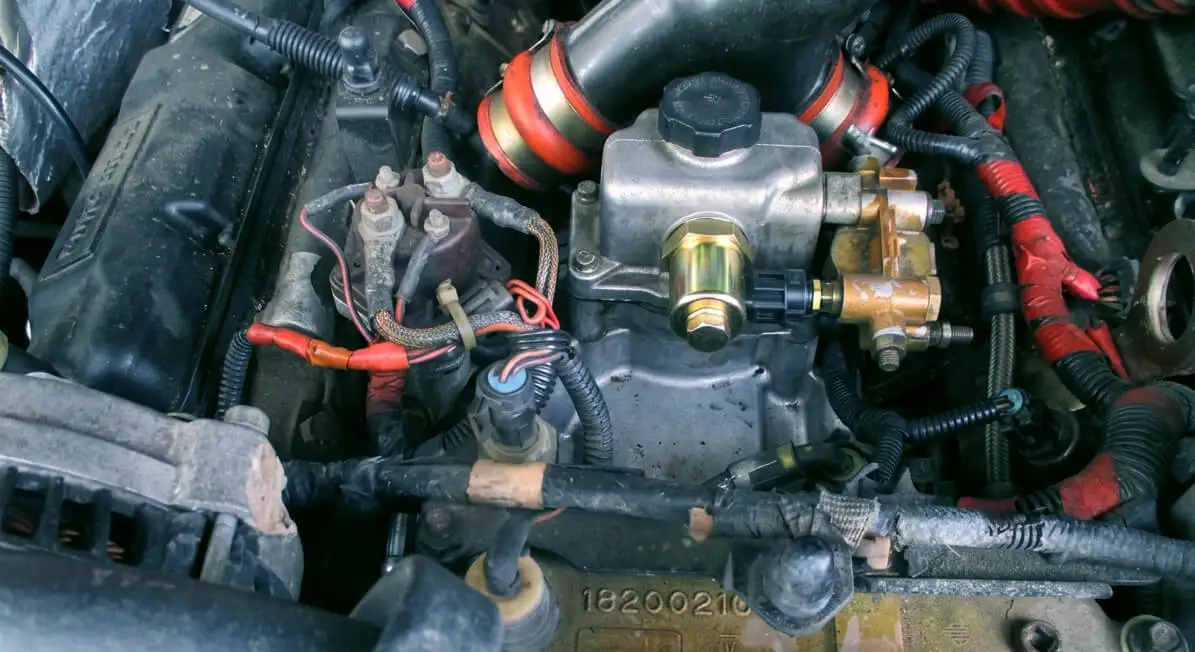

Location of the 7.3 IPR Valve

The location of the IPR valve 7.3 is buried deep inside the engine’s “V” section, at the rear side of the high-pressure oil pump (HPOP). To find it, first remove the fuel filter assembly for easier access to the HPOP tank area.

It’s advised to follow the electrical wires from the ICP sensor, located on the oil rail on the driver’s side, toward the engine valley since both ICP and 7.3 Powerstroke IPR sensors have the same harness branch. Next, you can find the solenoid. There will be a small and shiny gold solenoid; this is the IPR valve.

Common Symptoms of a Failing 7.3 IPR Valve

If the IPR of a 7.3 diesel engine does not function or dirt blocks it, the engine will show clear warning signs. This is a logical consequence of the fact that without the use of clean and high-pressure oil, the valve gets stuck.

Hard Starting or No-Start Issue: This is especially common when the engine is hot.

Rough Idle or Surging: If the valve is unable to maintain stable pressure, the engine may hesitate or search for the necessary idle speed.

Loss of Power: Poor acceleration when loaded means that the IPR is unable to control oil pressure properly.

Stalling: Random stalling when stopping at a red traffic light or while idling is a serious concern.

Trouble Codes: It is advisable to look for codes such as P1211 (ICP pressure above/below desired) or P1283.

Since it is located in a cramped space, many people believe that a special deep socket or an IPR removal tool is necessary for its removal without damaging the surrounding components.

Benefits of a 7.3 IPR Rebuild Kit

Numerous vehicle owners are inclined to replace their 7.3 IPR valve the moment any issues arise. However, that valve might not actually be broken. Instead, a good cleaning is all it needs.

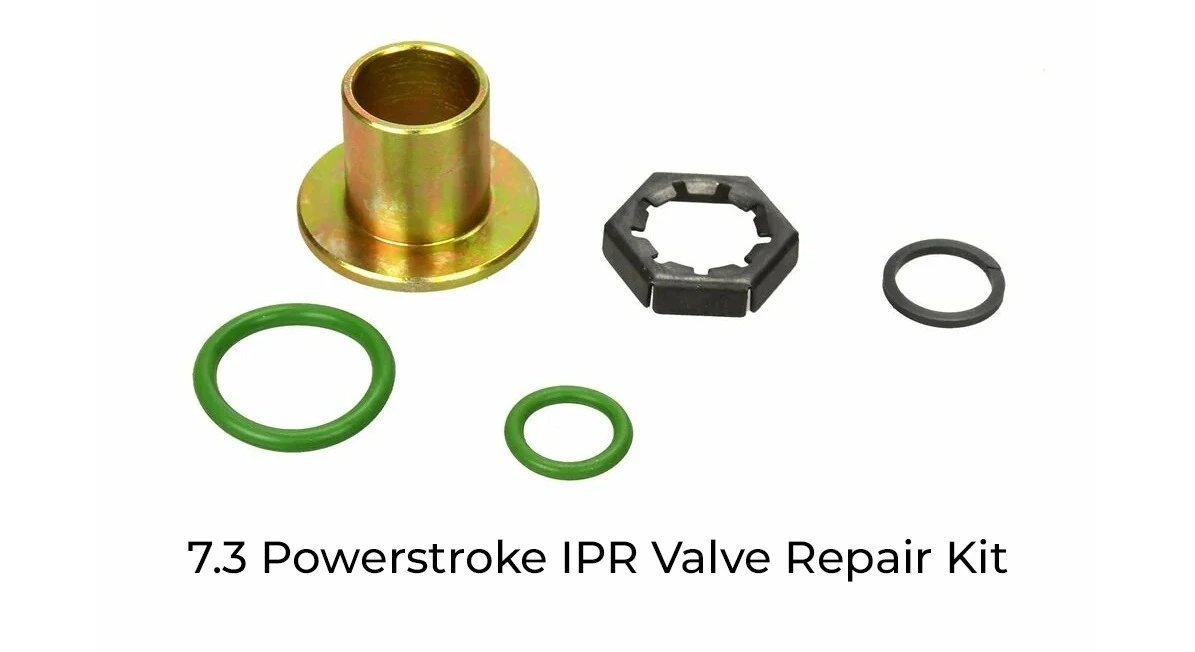

Rather than getting rid of the entire unit, all the owner needs is a 7.3 IPR valve refitting kit. This kit comes with new O-rings, a spacer, and a tin nut.

• The refitting of the valve costs significantly less than purchasing a brand new OEM-type valve.
• During the cleaning process, the individual can refurbish the inner channels of the valve.
• The refitting of the seals prevents internal leakage, which might be a direct reason for poor performance.
• If an individual decides to clean and refit their valve, make sure the procedure is conducted in a clean room and that all of the inner passages are not contaminated.

The Role of Quality Components

Though we tend to concentrate on the valve, it is equally important to take care of the hardware that keeps the engine together. At Tracktech Fasteners, we offer sturdy products that ensure various parts of the engine, such as head studs and oil system bolts, hold together properly under high pressure in the tuned Powerstroke.

Whenever you are performing maintenance on the high-pressure oil system, make sure that the bolts and fasteners are of the highest quality to avoid leaks that can cause escalation of the problems related to the IPR.

DIY Tips for Installation and Maintenance

If you want to have a good job completing the installation of a new valve or reinstalling a rebuilt one, here are some tips from professionals:

• A proper 7.3 Power Stroke IPR sensor tool will make installing and removing the valve straightforward and save you from hours of trouble.
• The tin nut at the end of the solenoid is famous for becoming loose. Make sure you do not forget to torque it to the value specified in the manual (usually 35-40 in-lb) during reassembly.
• When taking out the IPR, you have to check the fine mesh screen at the end. If there are holes in it or it is absent, it indicates deeper engine debris issues (like failed needle bearings) that need immediate attention.
• Regular oil changes are the best way to maintain your IPR valve, given that HEUI is a very sensitive system.

Final Thoughts

The 7.3 IPR valve plays a vital role, but it doesn’t have to be a source of trouble. By learning where the 7.3 IPR is located, recognizing signs of contamination, and knowing when to use a 7.3 IPR rebuild kit instead of replacing the valve completely, you can keep the older truck running smoothly.

If you want to improve performance or stop the nuisance of the cold start stumble, taking the proper steps to keep the IPR system in good condition will help ensure the Power Stroke engine remains in optimal working condition for years to come.
